drilling machine

DRILLING MACHINES

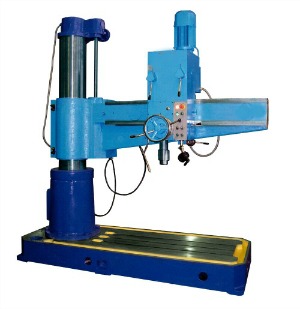

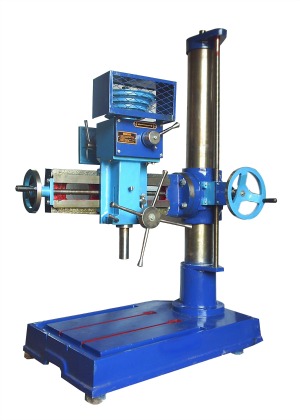

We manufacture Drilling Machine in various models for catering the demands of different industrial sectors. Our drilling machines comes with spindle running in set of 3 nos. excellent quality bearing, which allows heavy duty performance. drilling machine offered by our company is accompanied by various standard accessories like electrical consisting of main motor, elevating motor, control panel, limit switch and wiring. We also provide some optional accessories like heavy duty box table, coolant pump with fittings, machine vice and machine lamp. Our company has come up as one of the prominent Drill Machine Manufacturers and Drilling Machine Exporters. Drill Machine in which the drilling head is mounted to slide along a radial arm which can be rotated, raised, or lowered on a vertical mast to adjust the position of the drill above the workpiece.

technical specifications
  All the dimensions are approximate and subjected to change according to requirement.

DRILLING CAPACITY (MM) / MODEL NO. DF – 12 DF – 15 DF – 20 DF – 25 DF – 32 DF - 40
SPINDLE TRAVELS 75 90 120 155 155 190
SPINDLE CENTER TO COL. 155 155 215 255 270 320
SPINDLE NOSE TO TABLE 305 445 535 650 950 870
SPINDLE NOSE TO BASE 410 585 815 1015 1275 1250
COLUMN DIAMETER 47 47 74.5 74.5 99.3 112.2
MORSE TAPER IN SPINDLE DRILL CHUCK MT-2 MT-2 MT-3 MT-4 MT-4
TABLE SHAPE ROUND ROUND ROUND SQUARE ROUND ROUND
TABLE SIZE
215 235 315 335*335 460 460
BASE WORKING AREA 155*155 165*165 240*240 290*300 305*305 400*400
FLOOR SPACE REQUIRED 210X230 225 X 330 330 X 495 380 X 585 485 X 485 510 X 735
NO. OF SPEEDS 4 4 4 8 8 8
SPINDLE SPEED WITH 1440 RPM MOTOR 700 – 2480 700-2480 50-1850 110 – 2640 80 – 2250 50-1220
HEIGHT OF MACHINE 815 MM 940 MM 1320 MM 1535 MM 1880 1960
MOTOR REQUIRED 0.5 HP 0.5 H.P 1 HP 1HP 1HP 2 HP
V-BELT SIZE A-36 A-38 A 44-45 B 51-52 B 54-55 B 64-65
WEIGHT 35 KG 40 KG 90 KG 170 KG 190 KG 300 KG
