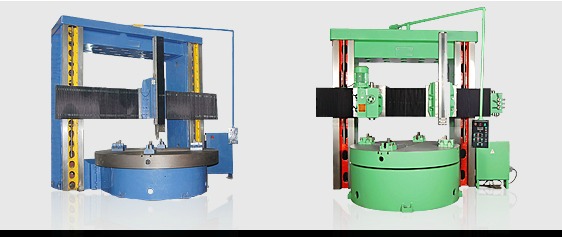

VERTICAL TURNING LATHE MACHINE

technical specifications

Technical Specification Of Vertical Lathe Machine
Particulars
UNIT
RMMVT-1.0
RMMVT-1.5
RMMVT-2
RMMVT-2.5
RMMVT-3 RMMVT-4 RMMVT-5 RMMVT-6
Table Diameter Max. Turning Dia with
mm
1000
1500
2000
2500
3000
4000
5000
6000
Side head below the table top
mm
1260
1750
2250
2750
3500
4500
5500
6500
Max. Turning Dia with Side head in working position
mm
1100
1700
2500
2800
3500
4500
5500
6500
Max. working height under cross rail
mm
1000
1200
1700
1700
2200
2200
2500
2500
Vertical Travel of Ram Head
mm
500
600
700
800
900
1000
1000
1000
Swivel Angle of Ram Head
30"
45
45
45
45
45
45
45
45
Horizontal Travel of Side Head
mm
600
600
700
800
900
1000
1000
1000
Max. Vertical Travel of Side Head
mm
1000
950
1250
1250
1750
1750
2000
2000
Table Speeds
RPM
10-100
8.5-85
5-50
2-20
1.5-15
1.5-15
1-10
1-10
Feeds, Horizontal & Vertical
No.
6
6
6
6
6
6
6
6
Range
mm/min
0.3-2.3
0.3-2.3
1-6.5
1-6.5
1-6.5
1-6.5
1-6.5
1-6.5
Main Motor
H.P.
15
20
25
30
40
40
50
60
Approx Weith Of Machine
M.T.
12
15
21
25
35
45
55
70
Standard Accessories :
»
One Ram Head on Cross Rail
»
4 Jaw Chuck
»
Automatic Lifting & Lowering of Cross Rail
»
Lubrication System on All Sliding Ways
»
Centralized Control Station With Interlocked Electrical Control Pannel
»
A Set of Service Tools
Special Accessories :
»
Additional Ram Head On Cross Rail
»
Turret Head On Cross Rail
»
Threading Head On Cross Rail
»
Side Ram Head
»
Milling Attachment
»
Coolant System
»
Slotting Attachment On Cross Rail
»
Anti-Friction Material Coating On Sliding Surfaces
»
Dro System

Specifications are subject to alteration and improvement without notice.
